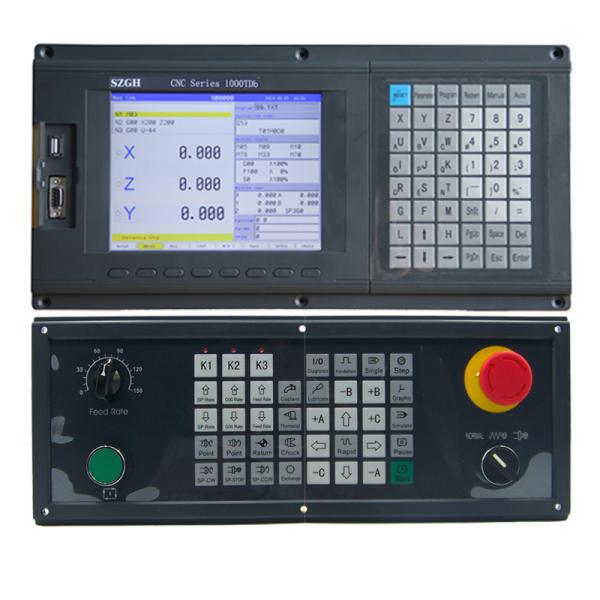

3 Axis Lathe & Turnning Cnc Controller System 64mb Memory For Turnning Or Lathe Machine
1.Feature:
SZGH-CNC1000TDB-3 is standard type 3 axis cnc lathe controller, support OEM and able connection with scale linear , with PLC laddter function , use to different ATC such as : umbrella type, linear type, disc type and so on.
SZGH-CNC1000TDB-3 is High-performance type 3 Axis CNC controller for lathe & turning center ,with 8.4 inches
display(800x600) ,2 analog spindle ,2ms interpolation in high speed, support ATC , PLC function, Macro function &
Position feedback function. which obviously improve the efficiency,precision and surface
2.Specification:
| Axis No: | 3 axis with X Z C |
| Application: | CNC turnning machine and lathe machine |
| Programming: | International standard G code and macro |
| Updated function: | ATC function and tool magazine |
| Customized function : | OEM display screen with clients' company name and logo |
| Stronger function: | Online programming |
| Warranty time: | 2 years |
| maintenance: | lifetime maintenance, quality assurance |
1) 800x600 8.4 inchs real color LCD displayer
2) Support PLC and macro function, and automatic tool exchange function
3) 64MB Memory , 32Mb user store room,
4) The max speed is 30m/min, feeding speed is 15m/min
5) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing
6) High anti-jamming switch power(220VAC -> 24VDC)
7) Built-in many plc programs,which can be edited freely.
8) With USB interface,it supports file operation in flash disk,system configuration and software upgrade
9) Display in chinese or english,which can be selected by parameter.
10) Analog voltage output of 0~10V in two channels,support double spindles
11) 32 bits high performance, low power consumption industrial grade ARM microprocessor.
12) I/Os : 56*32, 40*24 I/Os can be edited freely
13) cutter offset : C
14) English menu, program and interface, full screen edition
3.Product Size or drawing:
4.Application:
CNC lathe machinery; lathe center; wood working machine; numerically control grinder; MTDC applied to engraving CNC machine.
5.Company advantage:
Shenzhen Guanhong Automation CO.,LTD is one of the leading CNC & automatic company in China, specialized in designing projects, marketing, and oversea trading, having extensive experience in CNC package solution
SZGH Advantage:
? Certified actual products - We have a zero-tolerance policy for asset recovery vendors.
? Lowest package prices -Always offer lower price than other companies.
? Professional technical engineer team- possible fastest response and support to client’ application demand.
? Quality guarantee – Free, one-years warranty and life-long maintenance. Any quality problem, GuanHong promise to refund.
? Fast, professional and reliable International delivery – flexible and low cost delivery solution for clients.
6.Certification and award:
(CE certification picture)
